Dynamics 365将多选字段的显示名称存储到文本字段,用于SSRS报表
在 D365 项目中,SSRS 报表无法直接查询多选项字段。本文结合实际经验,介绍通过插件、工作流,将多选项的显示名称同步存储到文本字段中。
背景与问题
在 Dynamics 365 项目中制作 SSRS 分页报表 时,如果报表字段来自 多选项(Multi Select Option Set),基本都会踩到同一个坑:
多选项字段 无法直接 添加到 SSRS 数据集(无论是 FetchXML 还是 SQL 方式)

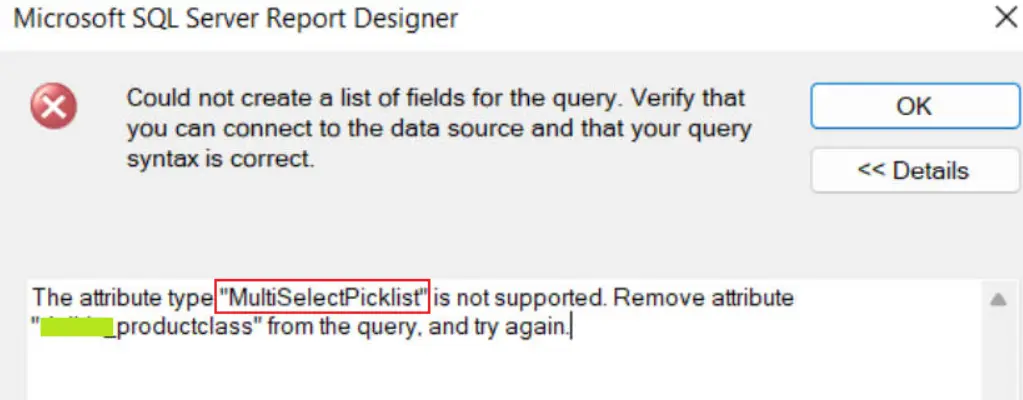

在 Report Designer 中尝试添加字段时,系统会直接阻止并提示错误。

解决思路
在实际项目中,一个 稳定且通用 的做法是:
- 新增一个 文本字段
- 用来存储多选项字段当前选中值的 显示名称
- 在多选项字段变更时,同步更新该文本字段
- SSRS 报表 只使用文本字段进行展示
这样做的好处是:
- 不依赖报表侧的特殊处理
- 数据在数据库层面就是可读文本
- 对后续统计、导出、对接都更友好
多选项之间的分隔符(例如英文逗号
,),只需要在项目中与业务方提前约定即可
示例说明

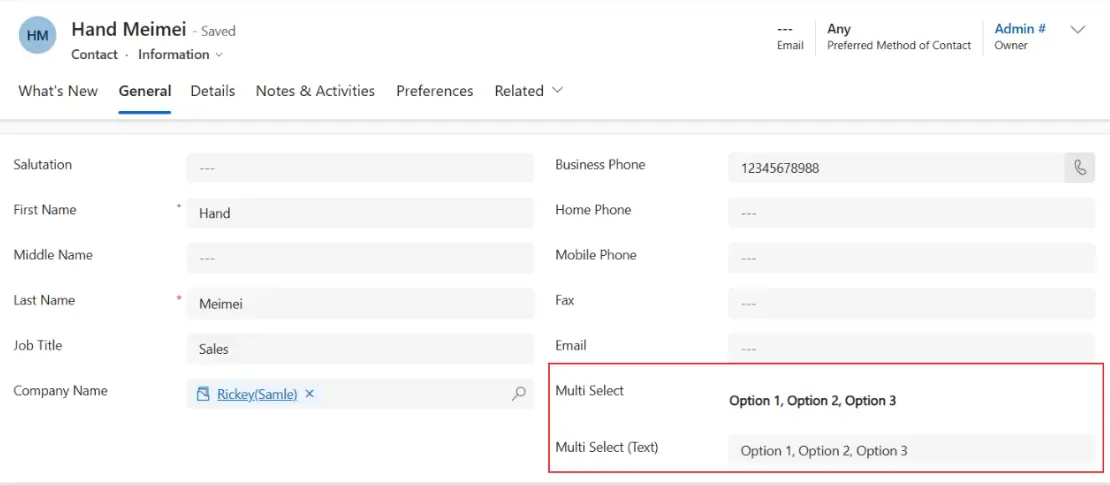

以 Contact 实体为例:
| 字段类型 | 字段名 |
|---|---|
| Multi Select Option Set | gdh_multi_select |
| Text | gdh_multi_select_text |
当用户修改 gdh_multi_select 时,系统会自动将选中项的 显示名称拼接后 写入 gdh_multi_select_text

实现方式
根据项目复杂度和技术栈不同,可以选择以下两种实现方式。
方式一:插件(推荐)
插件方案更适合:
- 对数据一致性要求高
- 有开发资源
- 不希望引入第三方组件的项目
注册方式
- 实体:Contact
- Message:Create / Update
- Stage:Post-Operation
- Filtering Attributes:
gdh_multi_select
插件逻辑非常简单:
当检测到多选项字段发生变化时,读取其选中值对应的显示名称,并更新到文本字段
插件完整代码见文末
方式二:工作流(低代码)
如果项目中不方便开发插件,也可以使用工作流方案。
这里借助第三方工具 Dynamics-365-Workflow-Tools :
GitHub 地址:
https://github.com/demianrasko/Dynamics-365-Workflow-Tools
安装 Dynamics-365-Workflow-Tools 基本步骤
| # | 基本步骤说明 |
|---|---|
| 1 | 打开 GitHub 仓库,进入 Releases(页面右下角) |
| 2 | 下载 Dynamics 365 Workflow Tools Solution(建议使用 Latest 版本) |
| 3 | 将解决方案导入到系统中,并按向导完成安装 |

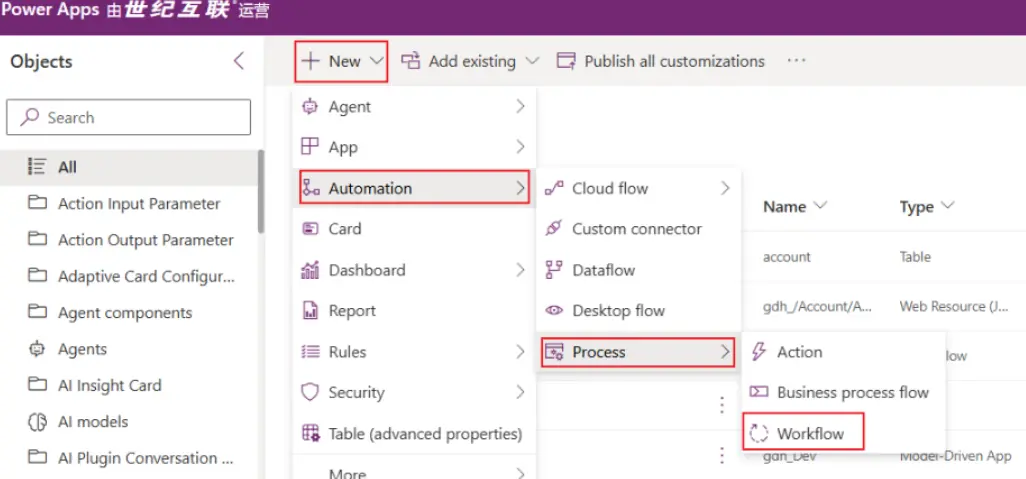

在 Power Apps 中新建 Workflow

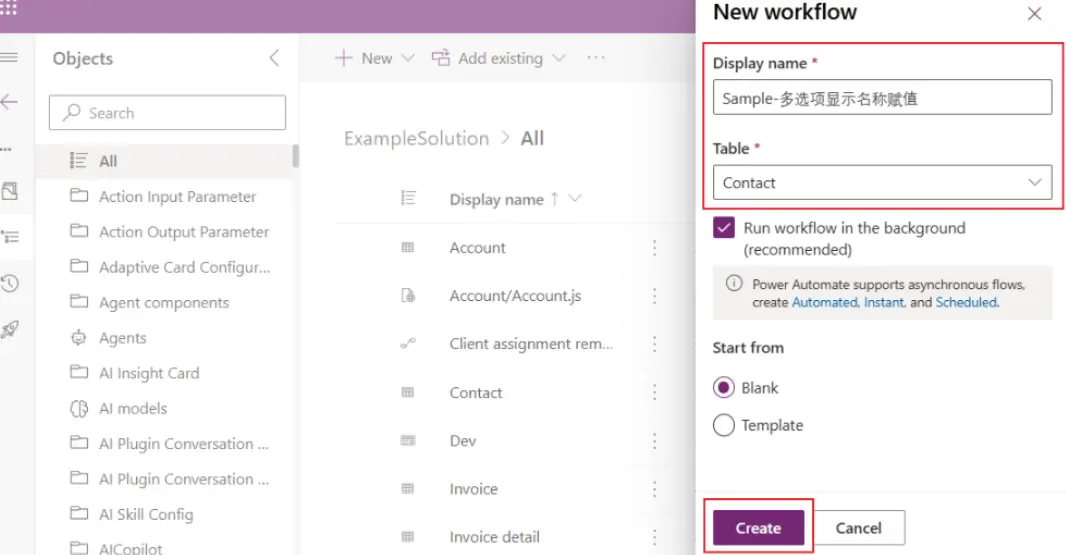

新建 Workflow:

填写一个有意义的名称,并选择空白模板后点击 Create。

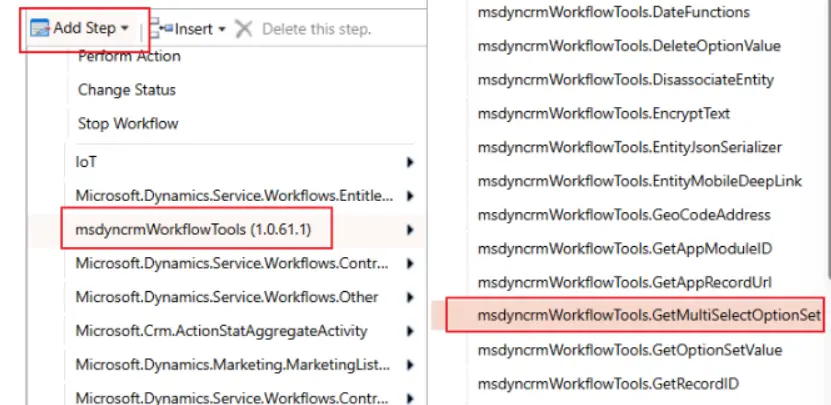

选择 Workflow-Tools → 选择 GetMultiSelectOptionSet

点击 Set Properties

填写/选择 参数 (参数如下) → 保存并关闭
| # | 参数 |
|---|---|
| 1 | Source Record URL |
| 2 | Attribute Name |
| 3 | Retrieve Options Names |
添加更新步骤 → 点击 Set Properties

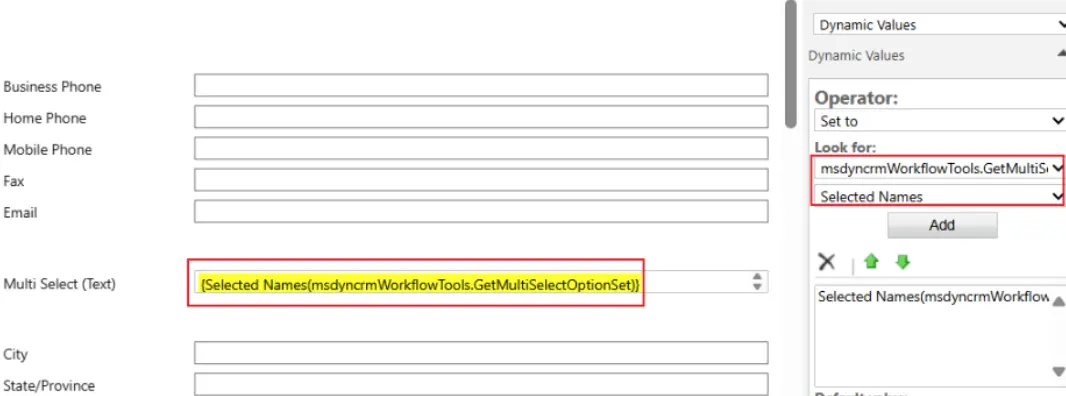

为字段赋值 → 保存并关闭

最后激活工作流即可
这种方式实现成本低,但在性能和可控性上略逊于插件,更适合轻量级场景
插件代码示例
using Microsoft.Crm.Sdk.Messages;using Microsoft.Xrm.Sdk;using Microsoft.Xrm.Sdk.Messages;using Microsoft.Xrm.Sdk.Metadata;using Microsoft.Xrm.Sdk.Query;using System;using System.Collections.Generic;using System.IdentityModel.Metadata;using System.Linq;using System.Runtime.Remoting.Services;using System.Text;using System.Threading;using System.Threading.Tasks;
namespace Blog.D365.Plugins.Contact{ public class ContactPostUpdatePlugin : IPlugin { public void Execute(IServiceProvider serviceProvider) { ITracingService tracer = (ITracingService)serviceProvider.GetService(typeof(ITracingService)); IPluginExecutionContext context = (IPluginExecutionContext)serviceProvider.GetService(typeof(IPluginExecutionContext)); try { if (context.InputParameters.Contains("Target") && context.InputParameters["Target"] is Entity) { IOrganizationServiceFactory factory = (IOrganizationServiceFactory)serviceProvider. GetService(typeof(IOrganizationServiceFactory)); IOrganizationService service = factory.CreateOrganizationService(context.UserId); IOrganizationService serviceAdmin = factory.CreateOrganizationService(null); Entity targetEntityRecord = (Entity)context.InputParameters["Target"];
// "context.Stage == 40" -> PostOperation if (context.Stage == 40 && targetEntityRecord.Attributes.Contains("gdh_multi_select") && (context.MessageName == "Create" || context.MessageName == "Update")) { SetMultiSelectText(serviceAdmin, targetEntityRecord); // [!code highlight] } } } catch (Exception ex) { tracer.Trace($"ContactPostUpdatePlugin unexpected exception:\n{ex.Message}"); throw; } }
private void SetMultiSelectText(IOrganizationService organization, Entity contactEn) { if (contactEn.Attributes.Contains("gdh_multi_select")) { OptionSetValueCollection optionSetValues = contactEn.GetAttributeValue<OptionSetValueCollection>("gdh_multi_select"); string roleText = GetMultiSelectOptionSetLabels( organization, "contact", "gdh_multi_select", optionSetValues); if (!string.IsNullOrEmpty(roleText)) { Entity updateContact = new Entity(contactEn.LogicalName, contactEn.Id); updateContact["gdh_multi_select_text"] = roleText; organization.Update(updateContact); } } }
public static string GetMultiSelectOptionSetLabels( IOrganizationService service, string entityLogicalName, string attributeLogicalName, OptionSetValueCollection values, int? languageCode = null) { if (values == null || !values.Any()) return string.Empty; // Retrieve the attribute metadata RetrieveAttributeRequest retrieveAttributeRequest = new RetrieveAttributeRequest { EntityLogicalName = entityLogicalName, LogicalName = attributeLogicalName, RetrieveAsIfPublished = true }; RetrieveAttributeResponse retrieveAttributeResponse = (RetrieveAttributeResponse)service.Execute(retrieveAttributeRequest); MultiSelectPicklistAttributeMetadata attributeMetadata = retrieveAttributeResponse.AttributeMetadata as MultiSelectPicklistAttributeMetadata; if (attributeMetadata == null) throw new InvalidPluginExecutionException("Attribute is not a Metadata."); // Prepare a map from option value to label Dictionary<int, string> optionLabels = attributeMetadata.OptionSet.Options.ToDictionary( o => o.Value.GetValueOrDefault(), o => GetLocalizedLabel(o, languageCode) ); // Map selected values to labels var selectedLabels = values .Select(v => optionLabels.ContainsKey(v.Value) ? optionLabels[v.Value] : $"(Unknown {v.Value})") .ToList(); return string.Join(", ", selectedLabels); }
private static string GetLocalizedLabel(OptionMetadata option, int? languageCode = null) { if (languageCode.HasValue) { var label = option.Label.LocalizedLabels .FirstOrDefault(l => l.LanguageCode == languageCode.Value); return label?.Label ?? $"(No label for {option.Value})"; } else { return option.Label.UserLocalizedLabel?.Label ?? $"(No label for {option.Value})"; } }
public static int GetCurrentUserLanguageCode(IOrganizationService service) { WhoAmIResponse whoAmI = (WhoAmIResponse)service.Execute(new WhoAmIRequest()); Guid userId = whoAmI.UserId; QueryExpression query = new QueryExpression("usersettings"); query.Criteria.AddCondition( new ConditionExpression("systemuserid", ConditionOperator.Equal, userId)); query.ColumnSet.AddColumns("uilanguageid"); Entity result = service.RetrieveMultiple(query).Entities.FirstOrDefault(); return result != null && result.Attributes.Contains("uilanguageid") ? (int)result["uilanguageid"] : 1033; } }}(完)
