D365 | 添加系统更新日志（自定义）

前言

在实际项目中，经常会有用户提出这样的需求：希望能够在系统内直观地查看每一次功能更新或调整的内容。基于这个需求背景，我在D365加了个自定义的系统更新日志页面，用于集中展示系统的更新记录。本文将介绍整体思路以及具体实现方式。

效果展示

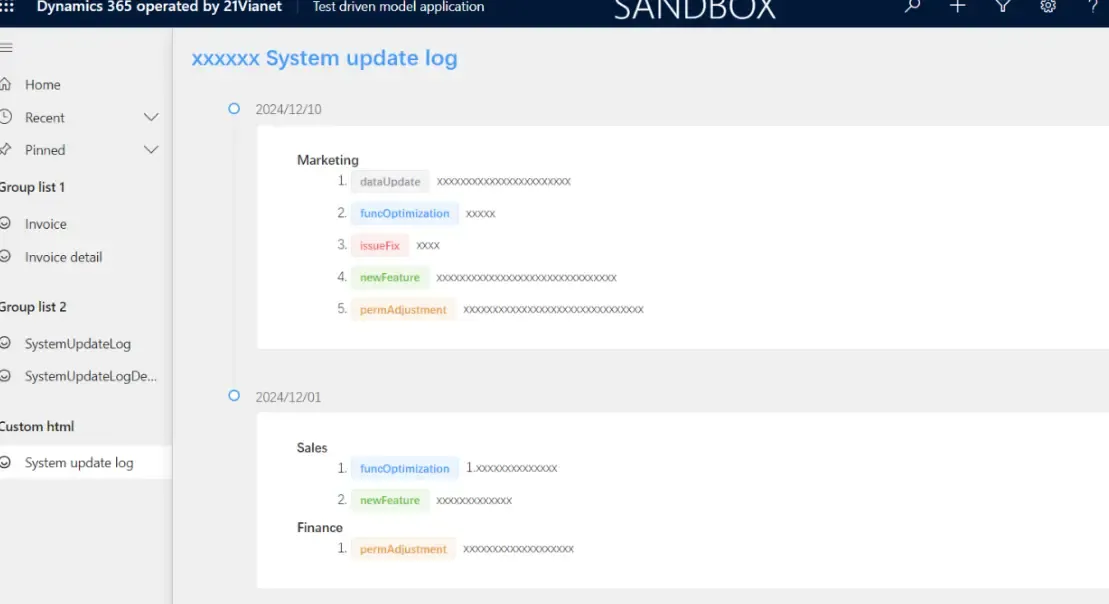

下面是最终实现的系统更新日志页面效果示例：

系统更新日志页面效果示例

实现思路

整体设计思路比较简单：以日期作为更新日志的一级维度进行汇总，在每个日期下，再细分具体的更新内容，因此，在数据结构上只需要两张表即可：

系统更新日志：用于记录更新日期等汇总信息
系统更新日志明细：用于记录具体的更新内容

在此基础上，通过一个自定义的 HTML Web 资源，使用 FetchXML 获取数据并进行前端展示。

实现步骤

新建 “系统更新日志” 实体
新建 “系统更新日志明细” 实体
新建并配置自定义 HTML Web 资源

使用说明

创建 “系统更新日志” 实体
创建 “系统更新日志明细” 实体
新建 SystemUpdateLog_v1.html Web 资源，并将下方代码复制进去

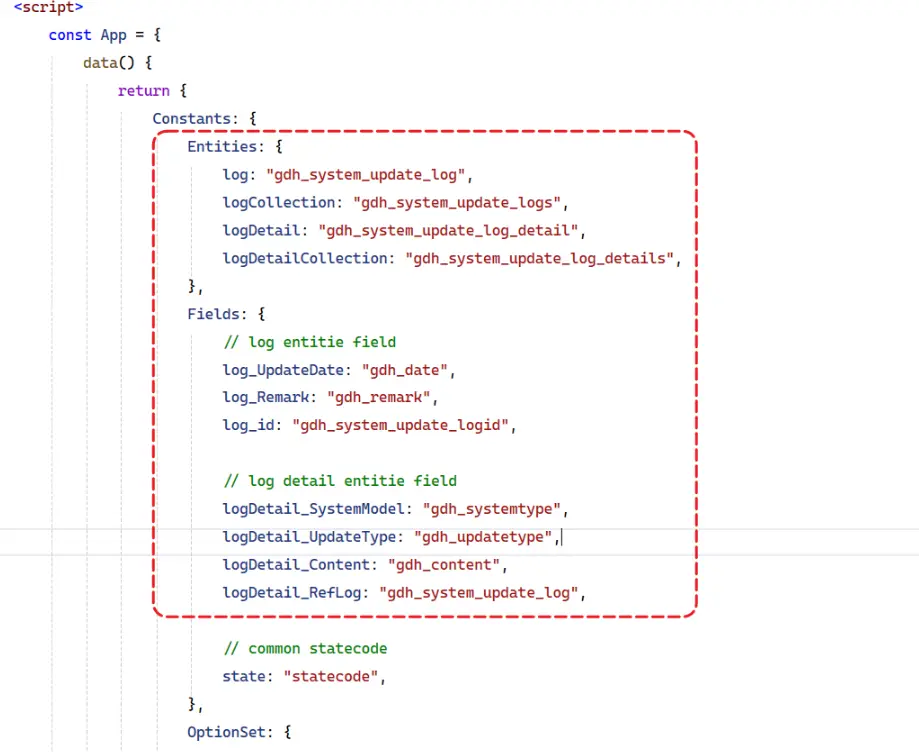

根据自己的实际情况，替换代码中实体的逻辑名称和字段的逻辑名称

替换代码中实体的逻辑名称和字段的逻辑名称

前端依赖资源

页面依赖以下 3 个前端资源，需要提前上传为 Web 资源（可在我的 GitHub 仓库中获取）：

Github仓库

vue3.js
element-plus.js
element-plus.css

示例代码

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width,initial-scale=1.0" />
    <link href="../css/element-plus.css" rel="stylesheet" />
    <title>xxxxxx System update log</title>
    <style>
        body {
            margin: 0;
            padding: 0;
        }
        .log-entry {
            margin-bottom: 20px;
        }
        .system-section {
            margin-left: 20px;
            margin-top: 10px;
        }
        .update-item {
            margin-left: 20px;
            margin-bottom: 10px;
            list-style-type: decimal;
        }
        .update-item span {
            font-weight: bold;
        }
        h3,
        h4 {
            margin: 3px;
        }
        .el-timeline-item__timestamp {
            font-size: 14px;
            color: #666;
        }
    </style>
</head>

<body>
    <div id="app">
        <el-container>
            <el-header>
                <h2 style="color: #409EFF; ">xxxxxx System update log</h2>
            </el-header>
            <el-main>
                <el-timeline>
                    <el-timeline-item v-for="log in fLogData" :key="log.log_id" :timestamp="log.date" placement="top" type="primary" hollow="true">
                        <el-card shadow="hover" style="margin-bottom: 20px;">
                            <div v-for="system in getSystems(log.details)" :key="system" class="system-section">
                                <h4>{{ system }}</h4>
                                <ul>
                                    <li v-for="(detail, index) in getDetailsBySystem(log.details, system)" :key="index"
                                        class="update-item">
                                        <el-tag :type="getTagType(detail.updateType)">{{ detail.updateType}}</el-tag>&nbsp;&nbsp;{{ detail.content }}
                                    </li>
                                </ul>
                            </div>
                        </el-card>
                    </el-timeline-item>
                </el-timeline>
            </el-main>
            <el-footer></el-footer>
        </el-container>
    </div>
    <script src="../js/vue3.js"></script>
    <script src="../js/element-plus.js"></script>
    <script>
        const App = {
            data() {
                return {
                    Constants: {
                        Entities: {
                            log: "gdh_system_update_log",
                            logCollection: "gdh_system_update_logs",
                            logDetail: "gdh_system_update_log_detail",
                            logDetailCollection: "gdh_system_update_log_details",
                        },
                        Fields: {
                            // log entitie field
                            log_UpdateDate: "gdh_date",
                            log_Remark: "gdh_remark",
                            log_id: "gdh_system_update_logid",

                            // log detail entitie field
                            logDetail_SystemModel: "gdh_systemtype",
                            logDetail_UpdateType: "gdh_updatetype",
                            logDetail_Content: "gdh_content",
                            logDetail_RefLog: "gdh_system_update_log",

                            // common statecode
                            state: "statecode",
                        },
                        OptionSet: {
                            stateOption: {
                                Active: 0,
                                InActive: 1
                            }
                        }
                    },
                    fLogData: [],
                };
            },
            created() {
                this.init();
            },
            methods: {
                init() {
                    let fetch = `
                        <fetch version="1.0" output-format="xml-platform" mapping="logical" distinct="false">
                            <entity name="${this.Constants.Entities.log}">
                                <attribute name="${this.Constants.Fields.log_id}" />
                                <attribute name="${this.Constants.Fields.log_UpdateDate}" />
                                <filter>
                                    <condition attribute="${this.Constants.Fields.state}" operator="eq"
                                    value="${this.Constants.OptionSet.stateOption.Active}" />
                                </filter>
                                <order attribute="${this.Constants.Fields.log_UpdateDate}" descending="true" />
                                <link-entity name="${this.Constants.Entities.logDetail}" from="${this.Constants.Fields.logDetail_RefLog}"
                                to="${this.Constants.Fields.log_id}" link-type="inner" alias="logDetail">
                                    <attribute name="${this.Constants.Fields.logDetail_Content}" />
                                    <attribute name="${this.Constants.Fields.logDetail_SystemModel}" />
                                    <attribute name="${this.Constants.Fields.logDetail_UpdateType}" />
                                    <filter>
                                        <condition attribute="${this.Constants.Fields.state}" operator="eq"
                                        value="${this.Constants.OptionSet.stateOption.Active}" />
                                    </filter>
                                    <order attribute="${this.Constants.Fields.logDetail_UpdateType}" descending="false" />
                                    <order attribute="createdon" descending="true" />
                                    </link-entity>
                            </entity>
                        </fetch>`;
                    let results = this.RetrieveRecordsUsingFetchXml(this.Constants.Entities.logCollection, encodeURI(fetch));
                    if (results && results.value && results.value.length > 0) {
                        this.fLogData =
                            results.value.reduce((acc, item) => {
                                const existingLog = acc.find(log => log["log_id"] === item[this.Constants.Fields.log_id]);
                                if (existingLog) {
                                    existingLog.details.push({
                                        systemModel: item[`logDetail.${this.Constants.Fields.logDetail_SystemModel}@OData.Community.Display.V1.FormattedValue`],
                                        updateType: item[`logDetail.${this.Constants.Fields.logDetail_UpdateType}@OData.Community.Display.V1.FormattedValue`],
                                        content: item[`logDetail.${this.Constants.Fields.logDetail_Content}`],
                                    });
                                } else {
                                    acc.push({
                                        log_id: item[this.Constants.Fields.log_id],
                                        date: item[this.Constants.Fields.log_UpdateDate + "@OData.Community.Display.V1.FormattedValue"],
                                        details: [
                                            {
                                                systemModel: item[`logDetail.${this.Constants.Fields.logDetail_SystemModel}@OData.Community.Display.V1.FormattedValue`],
                                                updateType: item[`logDetail.${this.Constants.Fields.logDetail_UpdateType}@OData.Community.Display.V1.FormattedValue`],
                                                content: item[`logDetail.${this.Constants.Fields.logDetail_Content}`],
                                            },
                                        ],
                                    });
                                }
                                return acc;
                            }, []);
                    }
                },
                getSystems(details) {
                    const systems = [];
                    details.forEach(detail => {
                        if (!systems.includes(detail.systemModel)) {
                            systems.push(detail.systemModel);
                        }
                    });
                    return systems;
                },
                getDetailsBySystem(details, system) {
                    return details.filter(detail => detail.systemModel === system);
                },
                getTagType(updateType) {
                    const typeMap = {
                        '功能优化': 'primary',
                        '新添功能': 'success',
                        '数据更新': 'info',
                        '权限调整': 'warning',
                        '问题修复': 'danger',
                        'funcOptimization': 'primary',
                        'newFeature': 'success',
                        'dataUpdate': 'info',
                        'permAdjustment': 'warning',
                        'issueFix': 'danger'
                    };
                    return typeMap[updateType] || 'info';
                },
                // ============================================
                /** [Begin] CRM function */
                // ============================================

                /** Common method to retrive records in 'Sync' mode based on custom query. */
                RetrieveRecordsUsingFetchXml(lEntityName, lFetchXml) {
                    let lResponse = null;
                    let lXMLHttpRequest = new XMLHttpRequest();
                    lXMLHttpRequest.open("GET", this.GetClientUrl() + "/api/data/v9.2/" + lEntityName + "?fetchXml=" + lFetchXml, false);
                    lXMLHttpRequest.setRequestHeader("OData-MaxVersion", "4.0");
                    lXMLHttpRequest.setRequestHeader("OData-Version", "4.0");
                    lXMLHttpRequest.setRequestHeader("Accept", "application/json");
                    lXMLHttpRequest.setRequestHeader("Content-Type", "application/json; charset=utf-8");
                    lXMLHttpRequest.setRequestHeader("Prefer", "odata.include-annotations=\"*\"");
                    lXMLHttpRequest.onreadystatechange = function () {
                        if (this.readyState === 4 && this.status === 200) {
                            lXMLHttpRequest.onreadystatechange = null;
                            lResponse = JSON.parse(this.response);
                        }
                    };
                    lXMLHttpRequest.send();
                    return lResponse;
                },
                GetClientUrl() {
                    let lGlobalContext = "";
                    try {
                        lGlobalContext = Xrm.Utility.getGlobalContext();
                    }
                    catch (e) {
                        lGlobalContext = parent.Xrm.Utility.getGlobalContext();
                    }
                    if (lGlobalContext !== null) {
                        return lGlobalContext.getClientUrl();
                    }
                    return null;
                }

                // ============================================
                /** [End] CRM function */
                // ============================================
            }
        };
        const app = Vue.createApp(App);
        app.use(ElementPlus);
        app.mount("#app");
    </script>
</body>

</html>

如果本文对你有所帮助，可以请我喝杯咖啡

（完）
